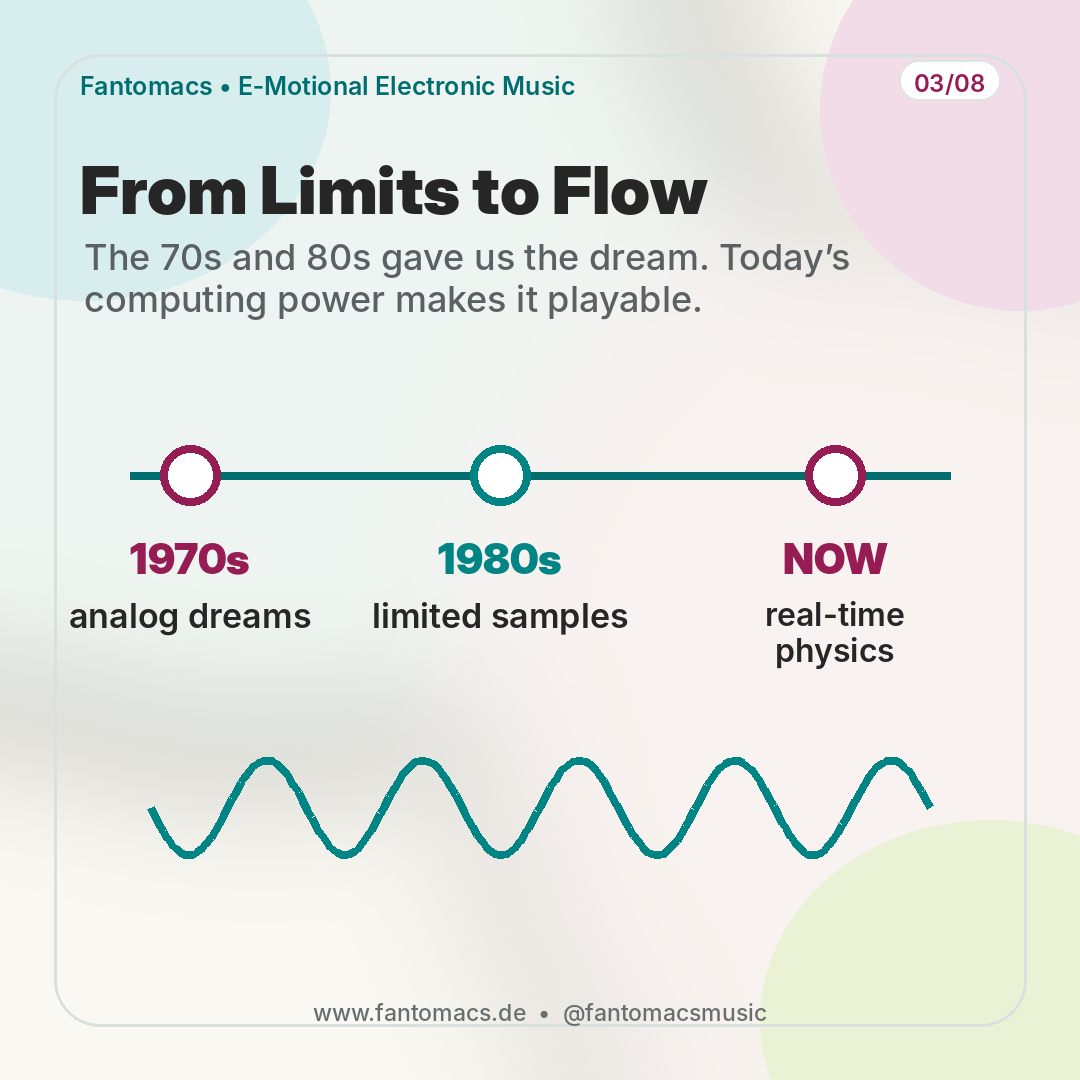

Looking back in the 1970s and 1980s, synthesizers were breaking into the mainstream, reshaping the sound of rock and pop. Bands like Pink Floyd, Genesis, Supertramp, Kraftwerk among many others embraced these futuristic machines, weaving lush pads, soaring leads, and otherworldly textures into their music. Back then, RAM was measured in kilobytes, CPU power was a fraction of today’s smartphones, and synthesis had to be achieved with analog circuitry or extremely limited digital sampling. Every sound was a balancing act between available hardware resources and creative ambition. Fast forward to today, and the computing power available to musicians is virtually limitless. This has opened the door to physical modeling - an approach that simulates the physics of instruments in real time, offering expressive control, realistic dynamics, and sonic detail far beyond what was possible in the early synth era.

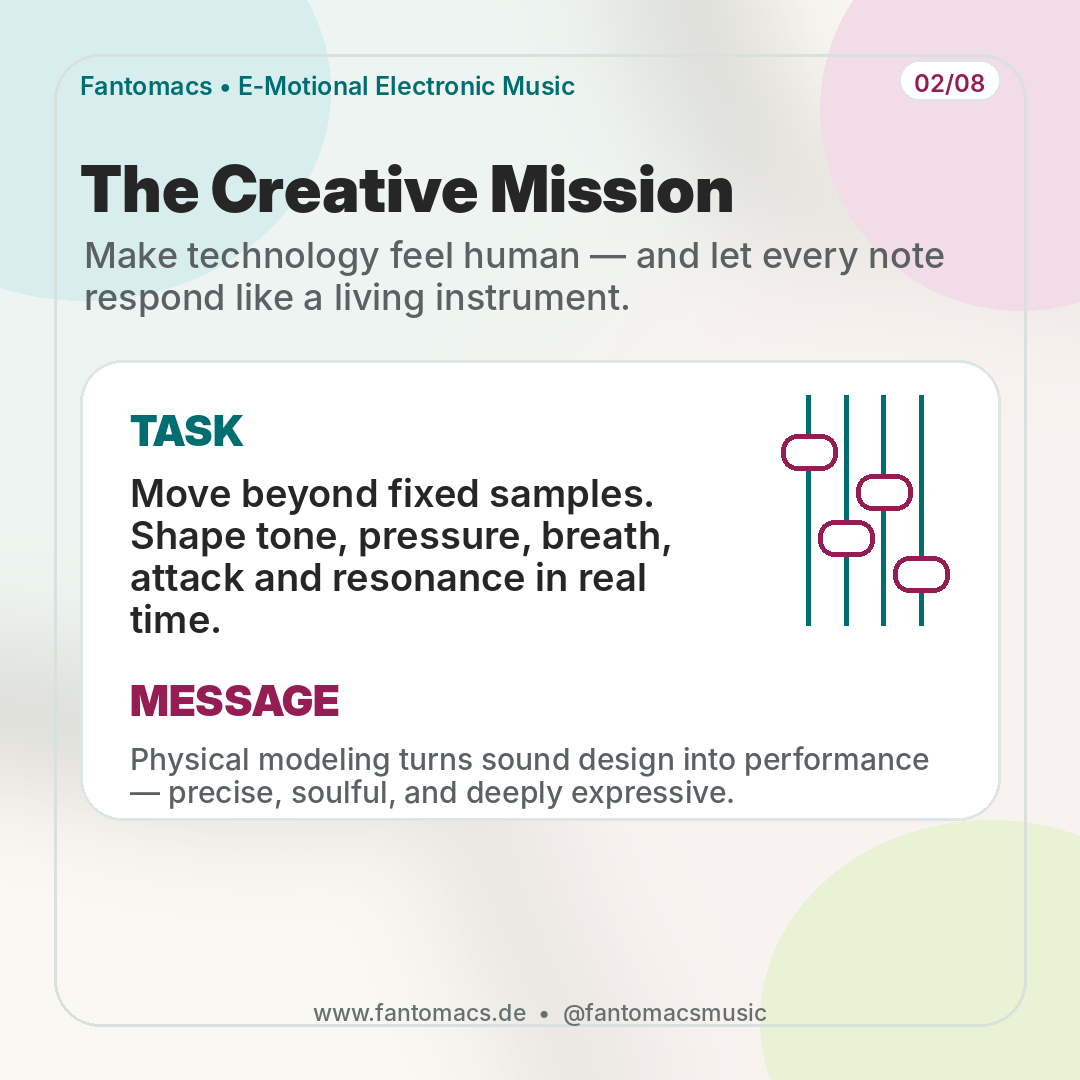

Physical modeling synthesizes instruments algorithmically, simulating the physics of sound production, rather than playing back fixed audio samples. In practice this means defining parameters for objects (strings, reeds, resonating bodies, etc.) and computing their interactions in real time. As one expert notes, this approach yields sounds “with the character and harmonic complexity of acoustic samples but the malleability of synthesis”. In other words, modeled instruments can offer the richness of recorded acoustics while still responding continuously to performance controls (breath, pressure, pitch slides, etc.). For example, a SWAM-modelled cello “sounds like a perfect cello” and naturally follows wide pitch slides or pressure changes – behaviors hard to capture in static samples.

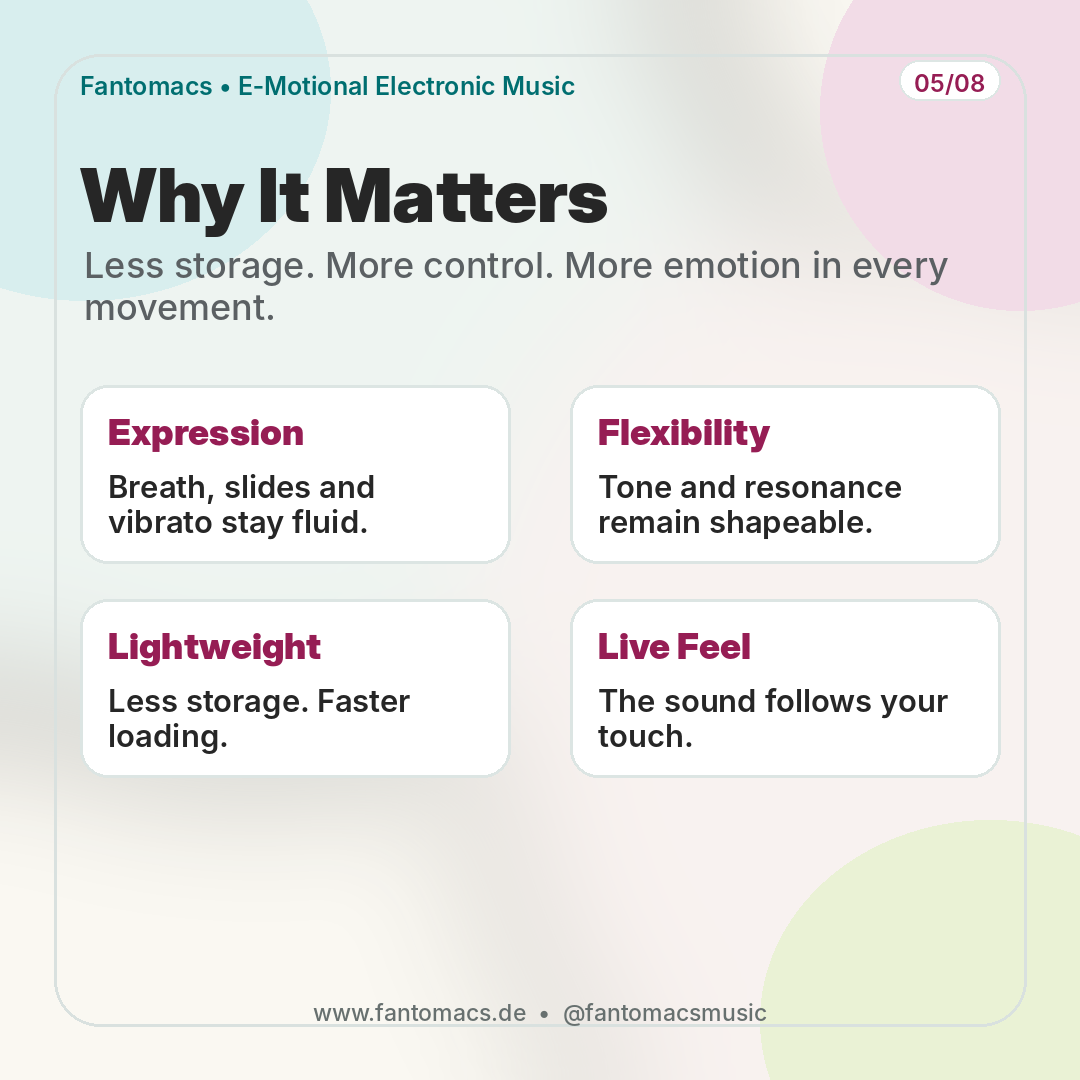

Key benefits of modeling over large sample libraries include:

Expressive Control: Models provide continuous dynamics and articulation (legato/portamento, vibrato, slides) without relying on fixed velocity layers or key-switches. Sophisticated controllers (breath, pressure, MPE keyboards) can directly influence timbre, making the performance more nuanced. For instance, SWAM woodwinds and strings are highly responsive to a breath controller, yielding “intuitive and dynamic” expression (audiomodeling.com).

Infinite Polyphony (CPU-bound): Since sounds are generated on-the-fly, polyphony is limited only by processing power, not by preloaded sample count. Some modern instruments boast effectively unlimited polyphony via modeling. (By contrast, sample-based systems often truncate voices or require huge memory for comparable polyphony.)

Small Memory Footprint: Modeling engines typically need far less storage than multi-gigabyte sample sets. A spectacular example: Audio Modeling’s SWAM virtual cello “does not contain any samples” and weighs only a few megabytes in memory audiomodeling.com. This tiny footprint contrasts with traditional sample libraries that can occupy many gigabytes, making models faster to load and update.

Parameter Tweaking and Updates: Because the sound is generated from parameters, one can adjust physical attributes (material, resonance, damping, etc.) at will. This provides sound-design flexibility beyond the fixed recordings of samples. Also, updates and new modeled expansions can be delivered via firmware/software (as with Roland’s expansions) rather than needing to re-record instruments.

System Resources: Modeling tends to shift demands to the CPU (complex calculations) instead of RAM/disk. In practice, high-end modern CPUs easily drive modeling engines, while large sample libraries can overwhelm memory/disk bandwidth (especially in orchestral setups).

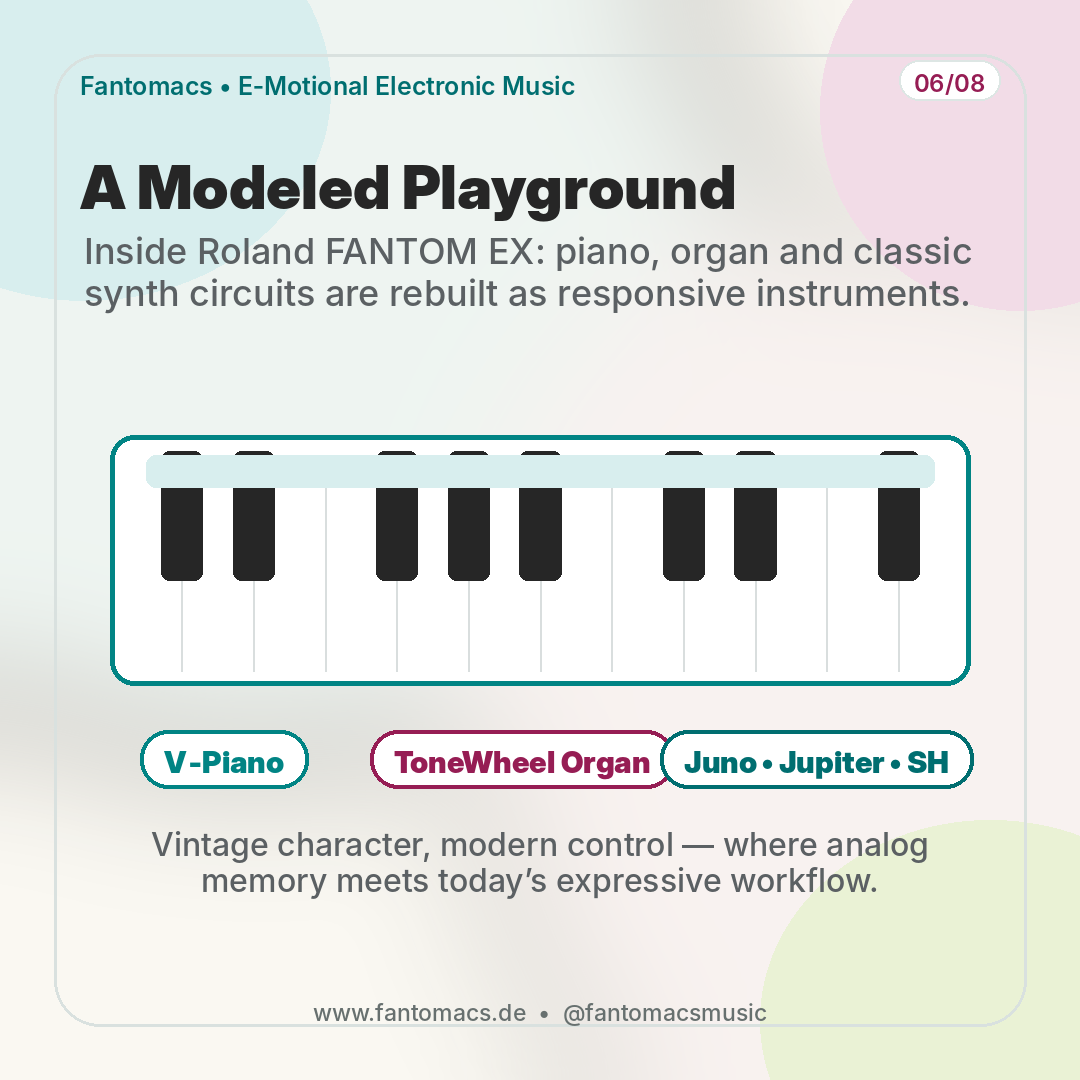

Roland’s latest FANTOM EX workstations integrate modeling technology across many engines. For example, the EX update adds a German Concert V-Piano expansion (a physical model of a grand piano) and a Virtual ToneWheel engine (a drawbar-organ model) alongside its existing sample-based engines (insounder.org). These are not mere samples; V-Piano uses real-time string and soundboard simulation, and Virtual ToneWheel algorithmically recreates each tonewheel and key-click of a classic organ. In addition, FANTOM EX offers numerous Analog Circuit Behavior (ACB) and Model expansions that faithfully emulate vintage Roland synths. Preinstalled expansions include ACB recreations of the Jupiter-8, SH-101, JX-3P, and Juno-106 (roland.com), and optional downloads add JX-8P, JD-800 and others. These models capture every knob-and-circuit interaction of the originals at the component level (roland.com). In short, the FANTOM EX provides modeled versions of iconic sounds (the German grand piano, drawbar organ, Jupiter-8 string pads, Juno-106 chorus, SH-101 bass lines, etc.) that can be played with unlimited polyphony and continuous expression – benefits impossible with static multisamples (insounder.org, roland.com).

Tone Flexibility: Any parameter (filter cutoff, envelope, oscillator detune, etc.) can be tweaked after-the-fact, since the sound is generated, not fixed.

Seamless Layering: MODELs can be layered and crossfaded without pre-resampling, allowing evolving textures.

Preset Library Size: Each modeled expansion (piano, organ, synths) adds only a modest data footprint compared to loading dozens of gigabytes of samples.

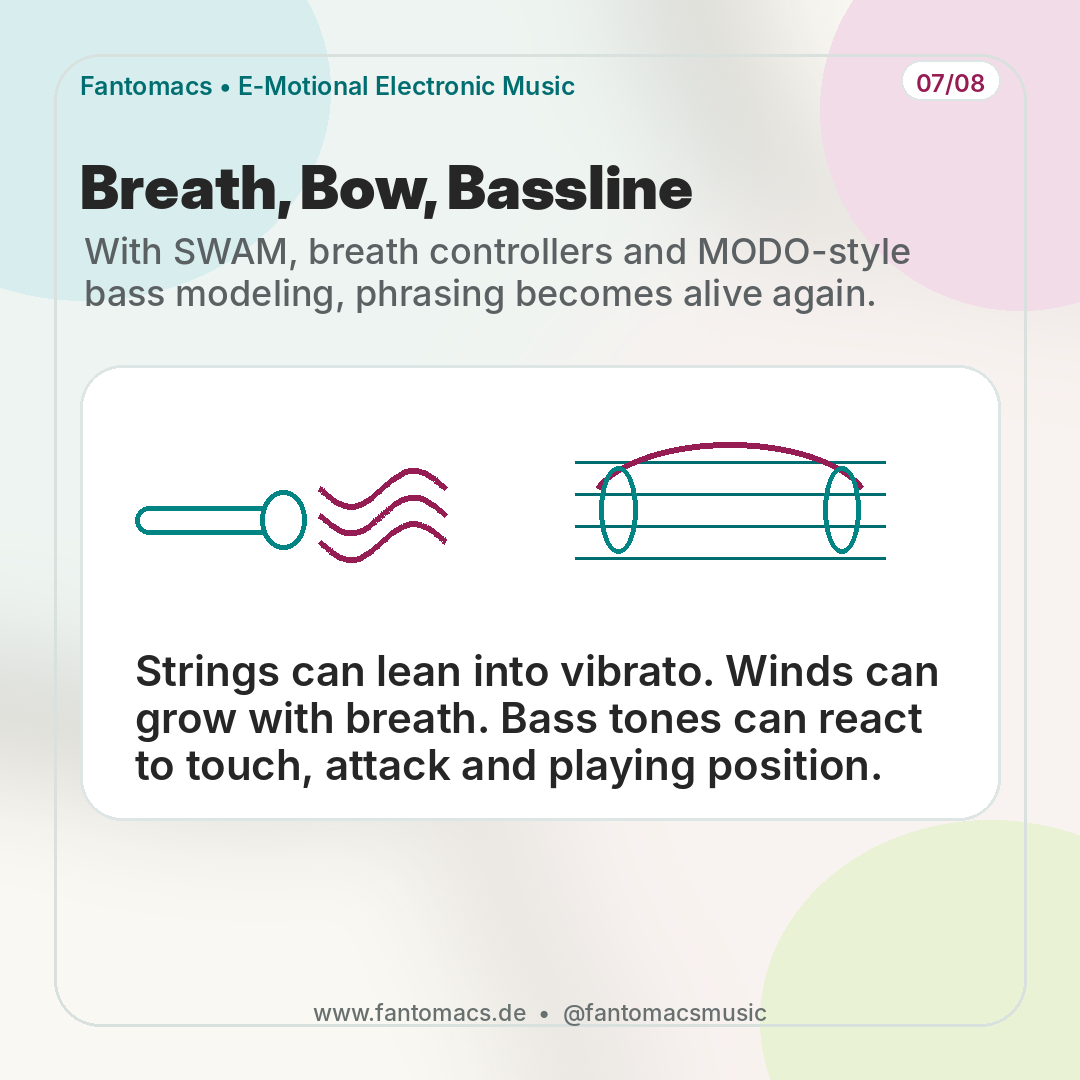

Audio Modeling’s SWAM (Synchronous Waves Audio Modeling) line exemplifies modern physical-model instruments for orchestral sounds. SWAM solo strings, woodwinds and brass are entirely sample-free, built on mathematical models of vibration and airflow (audiomodeling.com). The result is “flawless and extremely lightweight”: for instance, the entire SWAM Cello requires only a few megabytes of data

(audiomodeling.com). In performance, SWAM thrives on advanced controllers. The TEControl BBC2 Breath & Bite Controller is often paired with SWAM: Audio Modeling highlights that this breath controller “offers an intuitive and dynamic way to interact” with SWAM’s nuanced models. With BBC2 (and other breath or pressure inputs), the SWAM instruments respond with lifelike crescendos and timbral changes, capturing subtle expression (crescendi, vibrato depth, note transitions) in real time.

Benefits in practice: Unlike sample libraries (which must pre-record many articulations and layer switches), SWAM modeling lets a performer flow naturally. A violinist-like run or a saxophone glissando is generated on-the-fly, not spliced from discrete samples. Reviewers note that these modeled instruments respond so organically that it’s hard to distinguish from real performance; as one listener put it, the SWAM cello “sounds like a perfect cello” even though it’s entirely synthesized (synthandsoftware.com). And because it’s computed, any nuances of phrasing (embouchure changes, legato, bow pressure) can directly shape the sound in ways static samples cannot easily match.

IK Multimedia’s MODO Bass 2 takes the principles of physical modeling into the low-frequency domain, replacing gigabyte-sized sample libraries with a full real-time string, body, and player interaction simulation. Instead of playing back pre-recorded notes, MODO Bass 2 calculates each vibration from the virtual strings, resonating body, and pickups (in the case of electric models) or soundboard (in acoustic upright models) at the moment of performance. The result is a bass tone that reacts instantly to changes in playing style, dynamics, and articulation.

MODO Bass 2 covers 22 electric bass models, spanning iconic Fender, Music Man, Rickenbacker, and Hofner designs, plus double bass and fretless variants. Every parameter—from string gauge, scale length, and action to plucking position, muting style, and pickup blend—can be adjusted on the fly. Unlike static samples, these adjustments affect not just timbre but also the behaviour of the instrument: change plucking position mid-song and you’ll hear the harmonic structure shift naturally, just as it would on a real bass.

For advanced users, MODO Bass 2 also models performance gestures such as slap, pop, ghost notes, harmonics, and glissandi, allowing nuanced bass lines that would otherwise require dozens of key-switched samples. The physical model even recreates sympathetic string vibration, fret buzz, and the natural decay curve of each note. This makes it especially valuable for hybrid productions—like Fantomacs’ - where bass parts need to integrate seamlessly with both acoustic instrument models (piano, strings, winds) and synthesizer models (Jupiter-8, Juno-106, etc.) without sounding disconnected or mechanical.

In summary, physical modeling technology delivers greater expressive potential and flexibility than conventional sample libraries. It can achieve highly realistic, complex timbres with far less data, and it enables live control over the physics of the sound (dynamic response, continuous pitch/timbre modulation, and more).

In modern keyboards and plugins, this means sounds that adapt as you play: the German V-Piano model on the Roland FANTOM-EX can ring out with evolving resonance, and modeled synths react and sound exactly like their analog originals when you tweak parameters. Meanwhile, sample libraries are limited by their recorded snapshots and finite memory, making them heavier to manage and less fluid in performance. As technology advances, many professionals find modeling increasingly compelling – whether in flagship workstations like the Fantom or in specialized instruments like Audio Modeling’s SWAM – because it brings together authentic acoustic character and modern expressive control.

1. Acoustic Instrument Physical Models

German Grand Piano (V-Piano Model – Roland Fantom EX)

Featured in:

• Bless this Bliss – warm, nuanced piano voicings with realistic resonance
• Autumn – dynamic piano passages with continuous velocity control
• Behind the Scenes – rhythmic chord stabs and layered textures

Reason: V-Piano modeling gives more harmonic detail and sustain behavior than sample libraries, fitting Fantomacs’ expressive playing style.

Drawbar Organ (Virtual ToneWheel Model)

Featured in:

• Funky Heaven – authentic Hammond-like tones with real-time drawbar shaping
• Beachday – soft organ layers adding lounge-style warmth

Reason: Modeled tonewheels allow key-click, leakage, and overdrive nuances without static sampling artifacts.

2. Synthesizer Physical Models (Roland Analog Circuit Behavior & ZEN-Core Modeling)

Juno-106

Featured in:

• On The Road – warm pads and chorus-rich layers
• Beachday – lush chordal backdrops

Jupiter-8

Featured in:

• Emphasis – evolving synth brass and sweeping filters
• Unmet Needs Pt. 1 & 2 – wide, cinematic pads

SH-101

Featured in:

• Dusk You & Me – sequenced basslines and lead synths

JX-3P & JX-8P

Featured in:

• Silo – atmospheric pads and layered textures
• Autumn – layered polyphonic synth beds

JD-800

Featured in:

• Icy Dreams – highly textured ambient leads
• Behind the Scenes – digital/analog hybrid layer sounds

3. Modeled Orchestral / Wind Instruments (SWAM + Breath Controller)

Strings & Woodwinds

Featured in:

• Maria – SWAM strings for legato lines, expressive vibrato, and realistic bowing
• Silo - SWAM strings for legato lines, expressive vibrato, and realistic bowing
• Sea to Sky - SWAM Soprano Sax for ultra-realistic soprano sax sound and expressiveness

Reason: Breath and expression controllers give a living, evolving feel that static samples can’t replicate.

4. Other Modeled Instruments

Drum Machines

Featured in:

• Silo - BucketPops physical model of a Korg Minipops drum machine
• Oxygène Pt. 4 - BucketPops physical model of a Korg Minipops drum machine

Reason: Breath and expression controllers give a living, evolving feel that static samples can’t replicate.

 Basses

Featured in:

• Silo - Logic Pro built-in physical bass models (here: Classic Mellow, finger bass)
• Outer Surface - Logic Pro built-in bass models (here: Session Dark, finger bass)
• Sea to Sky - IK Multimedia Modo2 (here: Fretless Jazz bass)

Reason: Deep and authentic sound, built-in Bass pre-/Amp models, different styles of playing (e.g. finger, picked, slap).
